Vibrating Wire Piezometer

Vibrating Wire Piezometer

Product Details:

X

Price And Quantity

  • 1 Piece
  • 6800 INR

Trade Information

  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • As per order. Per Week
  • 1 Week
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • Standard Packaging.
  • Certification: ISO 9001 : 2015 & CE Marking Certified.

Product Description

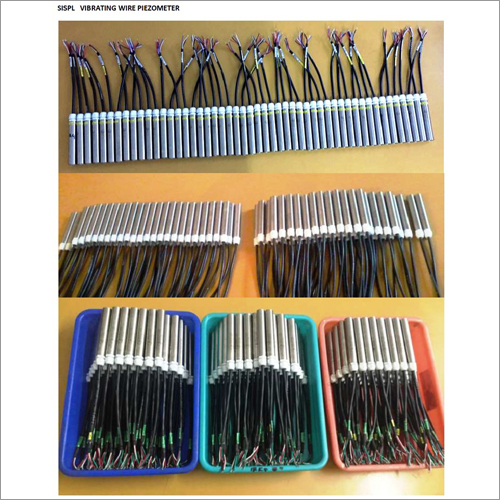

Established in year 2011, we are one of promising manufacturers and suppliers of Vibrating Wire Piezometer. It is used to monitor pore-water pressure and can also be used to monitor water level. Its typical applications include monitoring pore water pressure to determine safe rate, monitoring effect of dewatering system, and monitoring effect of ground improvement systems. Our product works by converting water pressure to a frequency signal via a diaphragm, a tensioned steel wire, and an electromagnetic coil. Vibrating Wire Piezometer is available in various types including standard, heavy-duty, push-in, multi-level, low-pressure, and vented.

Features:

  • High resolution
  • Reliable signal transmission
  • Rapid response

STANDARD PIEZOMETER

SPECIFICATION MODEL SIS-2001

Standard Ranges

2,5,7,10 kg/cm2

200,500, 700 kPa

1, 2, 3 MPa

Over Range 2 × rated pressure

Resolution 0.1% F.S.

Accuracy ± 1% F.S.

Linearity <0.5% F.S.

Temperature Range −20°C to +60°C

Length × Diameter 180 × 20mm 200 × 20 mm


SMALL DIA. PIEZOMETER

SPECIFICATION MODEL SIS-2002

Standard Ranges

2,5 kg/cm2

200 ,500 kPa

Over Range 2 × rated pressure

Resolution 0.1% F.S. (minimum)

Accuracy ± 1% F.S.

Linearity <0.5% F.S.

Temperature Range −20°C to +60°C

Length × Diameter 165 × 20 mm


DRIVE POINT PIEZOMETERS

SPECIFICATION MODEL SIS-2003

Standard Ranges 2,5,7,10 kg/cm2

200,500, 700 kPa

1, 2, 3, 5, 7.5 MPa

Over Range 2 × rated pressure

Resolution 0.1% F.S. (minimum)

Accuracy ± 1% F.S.

Linearity <0.5% F.S.

Temperature Range −20°C to +60°C

Length × Diameter 200 × 28.0 mm



Heavy Duty Piezometer Model SIS-2005

Length × Diameter (200 × 28.0 mm )

Stainless steel, - 50 μm, - 10 kPa, low air entry ; Ceramic, - 1 μm,- 450 kPa, high air entry


PERFORMANCE

Accuracy - ± 0.1%

Linearity - < ± 0.5% F.S.

Resolution - 0.25% F.S. (min.)

Thermal drift - ± 0.1% F.S. / °C

Thermistar - 3 kΩ
