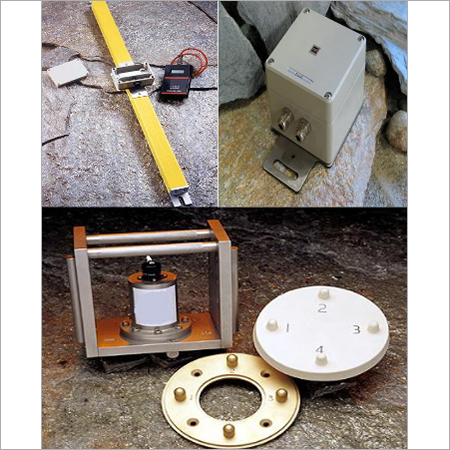

Tiltmeter Vibrating Wire

We have emerged as distinguished manufacturer and exporter of  Tiltmeter Vibrating Wire that is demanded to monitor change in inclination from  norm of points on the ground or on structures. Our offered tiltmeter is portable device designed to measure tilt in many types of structure. We offer this tiltmeter in various specifications to meet various needs of clients. Each  Tiltmeter Vibrating Wire is utilized to monitor changes in the inclination of a structure. We offer this tiltmeter to our precious clients at market leading prices.

Features

• Can either be permanently affixed to a structure or be portable
• Used to measure tilt +/- 15   degrees on the reference plate
• Suitable for monitoring rotation of concrete dams

PORTABLE TILTMETER

SPECIFICATION

• Standard Range ±30°
• Resolution ±0.05 mm/m (±10 arc seconds)
• Accuracy¹ ±0.02% F.S.
• Output @30° ±5.00 VDC
• Shock Survival 1000 g
• Temperature Range 0°C to +50°C
• L × W × H 159 × 89 × 143 mm

TILTMETER

SPECIFICATION

• Standard Range¹ ±15°
• Resolution ±0.01 mm/m (±2 arc seconds)
• Accuracy² ±0.1% F.S.
• Shock Survival 2000 g
• Temperature Range −20°C to +80°C
• Length × Diameter 139 × 32 mm (transducer only)
